When you’re working on furniture or kitchen cabinetry, every detail matters. If your door panels are thicker than the standard size, such as 26mm cabinet doors, choosing the right hinge is not just about functionality but also durability and long-term performance. Many homeowners, carpenters, and furniture makers struggle to find a hinge that can handle thicker doors without compromising smooth opening and closing. This guide will help you understand the types of cabinet hinges for 26mm thick door panels, how to choose the right one, and what to consider during installation.

Why Door Thickness Matters in Cabinet Hinges

Most standard cabinet doors are between 16mm and 22mm thick, which makes hinge selection relatively straightforward. However, once you go beyond that—like with 26mm thick cabinet doors—the hinge must be designed to handle the extra weight and depth. Using the wrong hinge can result in:

• Misaligned or sagging doors over time

• Difficulty in closing or maintaining the right overlay

• Extra strain on screws and mounting plates

That’s why specialized hinges for thick cabinet doors are necessary.

Types of Cabinet Hinges Suitable for 26mm Panels

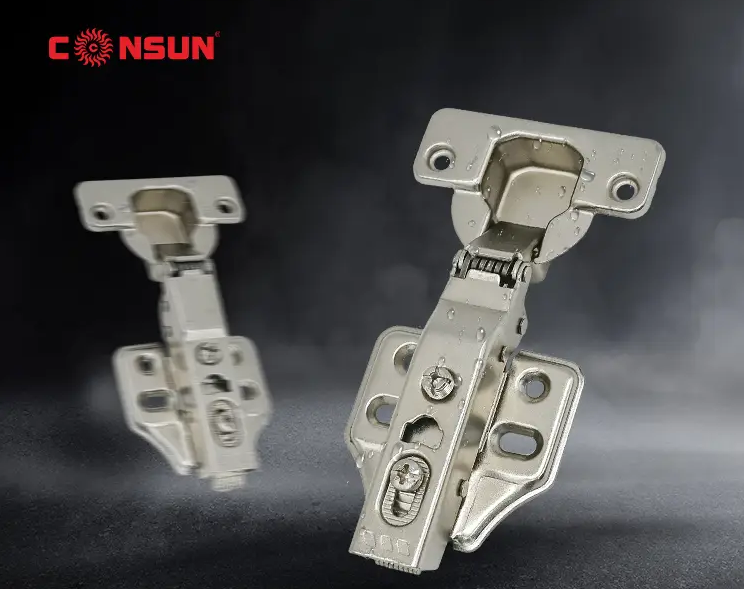

1. Concealed Hinges (European Hinges)

These are the most common choice for thicker doors because they provide a clean look and smooth operation. For 26mm doors, you’ll need a hinge cup designed for deeper boring—often around 13mm to 14mm depth instead of the standard 11.5mm.

• Best for modern kitchens and furniture

• Available in soft-close and standard versions

• Can be used for full overlay, half overlay, or inset doors

2. Thick Door Hinges

Some manufacturers produce dedicated thick door hinges that support panels up to 32mm. These hinges usually feature reinforced arms and springs, ensuring reliable performance under heavier loads.

• Suitable for solid wood cabinet doors

• Often used in high-end furniture or wardrobes

• Provide wide opening angles (up to 165° in some cases)

3. Overlay Hinges with Adjustable Mounting Plates

For projects where precise alignment is critical, overlay hinges with adjustable plates can help. These allow micro-adjustments in depth, height, and side-to-side, which is particularly useful when dealing with heavy or thick doors.

Key Considerations Before Buying Hinges

When selecting cabinet hinges for 26mm thick door panels, keep the following in mind:

• Bore Hole Depth – Standard hinge cups may not fit. Ensure your drill bit allows for deeper boring.

• Opening Angle – Depending on whether you need 90°, 110°, or 165° hinges, confirm the hinge’s maximum swing.

• Weight Support – Solid wood doors or MDF panels at 26mm are heavy. Look for hinges designed for extra load-bearing.

• Mounting Plates – Always match the hinge with the correct plate for optimal alignment.

• Soft-Close vs. Standard – For kitchens and wardrobes, soft-close thick door hinges are preferred to prevent slamming and wear.

Installation Tips for 26mm Thick Cabinet Doors

1. Use the Right Drill Bit – A 35mm Forstner bit is standard, but you’ll need to drill slightly deeper than usual.

2. Measure Overlay Carefully – Thicker doors may require adjustments in hinge positioning.

3. Check Alignment Before Final Mounting – Dry fit the hinge and plate before securing screws.

4. Reinforce if Necessary – For very heavy doors, use additional hinges per panel (e.g., three hinges instead of two).

Common Mistakes to Avoid

• Using standard hinges meant for 16–22mm doors

• Ignoring the door’s weight capacity

• Misaligning hinge cup depth, leading to poor closing

• Forgetting to choose hinges with wider opening angles for wardrobes or corner cabinets

Conclusion

Choosing the right cabinet hinge for a 26mm thick door panel ensures your cabinetry not only looks professional but also lasts for years without functional issues. From concealed soft-close hinges to specialized thick door hinges, the market offers multiple solutions tailored for heavier panels. By paying attention to bore depth, opening angle, and weight capacity, you can achieve smooth operation and a perfect fit.
