SLIDE

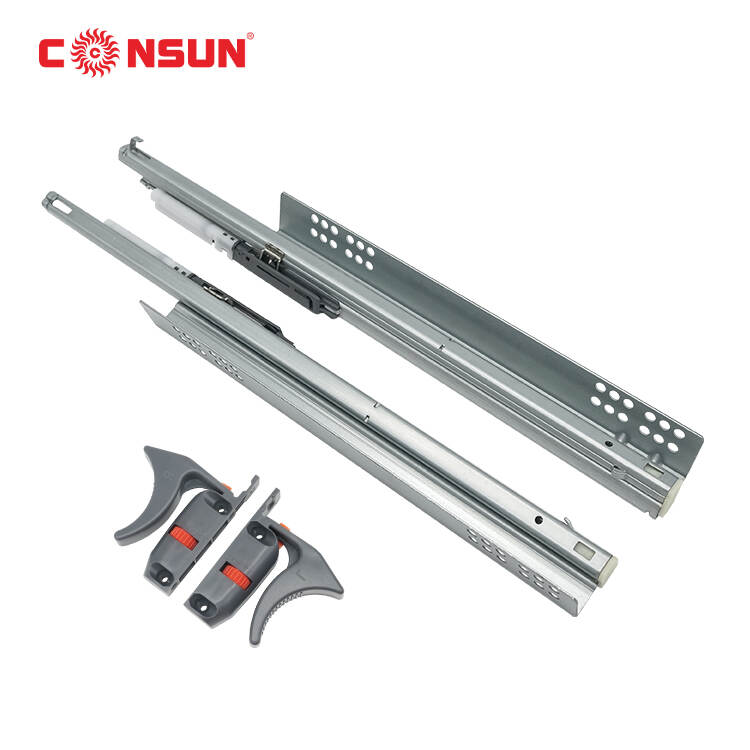

The Slide Rail Model 3514H is a high-quality, full-extension concealed slide designed to provide superior performance for drawer systems. This advanced slide rail integrates a range of features aimed at enhancing stability, ease of use, and durability, making it an ideal choice for both residential and commercial applications.

1.Technical advantages: Use 5D multi-directional adjustment technology to ensure that the drawer opens and closes synchronously throughout the process to prevent tilting and flipping. 2.Load-bearing capacity: The load-bearing capacity is stable up to 35KG, which can meet the use requirements of heavy drawers. 3.Visual effect: Create a minimalist visual effect. 4.Applicable range: Suitable for high-end custom furniture.

The Model 4519 Interlocking Drawer Slide is an innovative, high-security solution designed to enhance safety and functionality in furniture applications. This advanced slide is engineered with a special interlocking function that prevents heavy furniture from tipping over, making it ideal for households with curious children. With its robust construction and superior load-bearing capacity, the Model 4519 is an excellent choice for various environments, ensuring durability and reliability.

The electroplate manufacturing process to make the shiny finish Solid double-row round steel balls, the drawer opens smoothly and silently Full extension design is convenient for extracting goods

Push-open concealed Mounting hole position Concealed slide Running silence

45 KG / 100 1 B LOADING CAPACITY SMOOTH PUSH 50,000 TIMES LIFECYCLE TEST OEM 48 HOURS SALT8 SPRAY TEST IN-HOUSE FACTORY TECHNOLOGY ORIGINAL EQUIPMENT MANUFACTURER

45 KG / 100 1 B LOADING CAPACITY SMOOTH PUSH 50,000 TIMES LIFECYCLE TEST OEM 48 HOURS SALT8 SPRAY TEST IN-HOUSE FACTORY TECHNOLOGY ORIGINAL EQUIPMENT MANUFACTURER

Bidirectional sliding Two-way pull, convenient and fast Solid metal ball High-quality ball bearing to ensure it runs smoothly. Quiet without noise Push and pull between the silent, A smooth and gentle push can be

Three-Fold Track​ Featuring a full-extension design, it offers effortless access to goods. We also provide a single-extension option with a two-fold track for different needs.​ Buckle​ The buckle on the third channel simplifies the installation process, making it quick and hassle-free.​ Solid Metal Ball​ Equipped with high-quality ball bearings, it ensures a smooth operation. You can choose from 2 to 5 balls according to your requirements.​ Nylon Rubber Stopper​ Designed to maintain silence and retain its shape, it guarantees a quiet and long-lasting performance.

Easy Press Rebound​ With a humanized one - click design, it pops out effortlessly, offering convenient access.​ Two - Fold Track, 3/4 Extension, Concealed Slide​ This configuration enables easy extraction of items, combining functionality and a sleek, hidden appearance.​ Soft Close with Hydraulic Damper​ The hydraulic damping design ensures silent operation, while the tough return spring provides excellent buffering for a smooth closing experience.​ Humanized Features​ The barb tail design allows for quick and easy installation and removal. It can rapidly release the tail buckle, preventing the drawer from sliding inward.​ Flexible Screw Holes​

3-FOLD FULL EXTENSION​ With full extension opening, access the entire drawer effortlessly. It pulls out smoothly and synchronously, ensuring no delay in operation. Enjoy a seamless glide without side panels for a sleek look.​ HYDRAULIC DAMPER​ Equipped with a hydraulic damper, the soft-close feature eliminates noise when pushing the drawer shut, creating a quieter environment.​ MOUNTING HOLE POSITION​ Designed for stability, the precise mounting hole position ensures a secure and reliable installation.

Perfect electroplate Two-fold track Nylon rubber Ball bearing
